Hi-Fi Amplifier > Bravo 24bit/96kHz Digital Processor > Firestone Audio Co., Ltd.



Bravo 24bit/96kHz Digital Processor


from

Firestone Audio Co., Ltd.






Ask manufacturer about this product

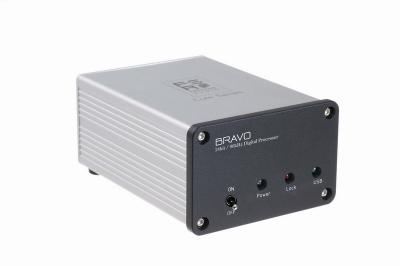

Firestone Audio Co., Ltd. Bravo 24bit/96kHz Digital Processor photo 1
Views: 7386
Last update: 2010-04-20
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 |

Feature
Bravo is a digital processor.
Using function of re-clock is to correct the jitter which is the time variation of a periodic signal in electronics in order to enhance the quality and details of sound. Adopting various kinds of support format (three types of input such as USB/Coaxial/Optical?two types of output such as Coaxial/Optical). Whole product supports 24 bit/96kHz digital signal format (include USB).
FSA Suggests adopting Bravo to use with Fubar4 and Fubar4 plus which can make the users obviously feel the clear positions of musical instruments and the increasing sound-quality. (Suggestion for Using Bravo: selection1 and selection2)

Technical Specifications
* Circuit Structure : Fully support to 96kHz / 24-bit digital signal
* Power Structure : Switching DC-DC regulator, Soft-Start circuit
* Support Format (USB input) : 16-bit, 32kHz / 44.1kHz / 48kHz / 96kHz
24-bit, 44.1kHz / 48kHz / 96kHz
* Support Format (Coaxial / Optical input) : 16-bit, 32kHz / 44.1kHz / 48kHz / 88.2kHz / 96kHz
24-bit, 32kHz / 44.1kHz / 48kHz / 88.2kHz / 96kHz
* Support Format (Coaxial / Optical output) : 16-bit, 32kHz / 44.1kHz / 48kHz / 88.2kHz / 96kHz
24-bit, 32kHz / 44.1kHz / 48kHz / 88.2kHz / 96kHz
* Input Select : Auto Select, USB input is highest priority
* Reclock : Include Fi-reclock? technology to reduce jitter
* Circuit Protect : Over current protect
* USB Chip : TENOR - TE0722
* Receiver Chip : TI - DIR9001
* Transmitter Chip : Wolfson - WM8804

Connectivity
* USB interface (USB V1.1)
* Digital input : 1 of Coaxial jack
1 of Optical jack
* Digital output : 1 of Coaxial jack (isolation pulse transformer output)
1 of Optical jack

System Requirements
* Using in any digital equipment with coaxial / optical output function, max format support to 24-bit / 96kHz
* Intel? Pentium? 2, Celeron? 800MHz or higher computer system
* Mic

Specifications > Amplifier > Bravo 24bit/96kHz Digital Processor
ManufacturerFirestone Audio Co., Ltd.
Model nameBravo 24bit/96kHz Digital Processor
Catalog No.4716329380100
Kind of amplifierOther
TypeDigital
Number of channels2
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputNo
Available front panel colorsSilver/Black
Available front panel materialsAlumi
Dimensions (Height/Width/Depth)7.7/7.8/10.7 cm
