Hi-Fi Amplifier > Mass Remote Pre-AMP > Firestone Audio Co., Ltd.



Mass Remote Pre-AMP


from

Firestone Audio Co., Ltd.






Ask manufacturer about this product

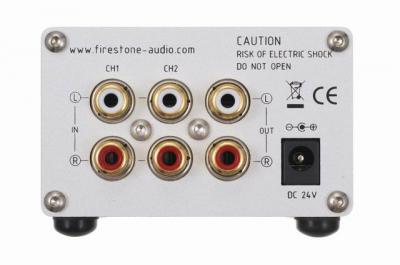

Firestone Audio Co., Ltd. Mass Remote Pre-AMP photo 2
Views: 8635
Last update: 2010-04-20
| Photo 1 | Photo 2 | Photo 3 |

Feature
Mass is a Pre Amplifier with Remote Control.
Adopting red-ray remote control can make users easily and conveniently turn on/turn off the Mass, and adjust the volume. In addition, users can depend on its own needs to change the source channels with remote control. Using the acrylic faceplate with Gray Color let Mass has not only the quality of high-technology but also the appearance of fashion design.

Technical Specifications
* Circuit Structure : Infrared ray control with pre-Amplifier
* Power Structure : Switching power supply, Soft-Star circuit
* Control Mode : Stand by / Power on / Volume up / Volume down / Input Select / Mute
* Gain Range : -95.5dB to 31.5dB
* Circuit Protect : Output short / over current protect
* Volume Control Chip : TI - PGA2310

Audio Performance (1kHz sine wave, 2Vrms output, 24-bit / 48kHz)
Frequency response (From 40Hz to 15kHz) : 40Hz +0.01dB, 15kHz -0.03dB
Noise level (1kHz, A-Weighted) : -107.5dB
Dynamic range (1kHz, A-Weighted) : 107.5dB
THD% : 0.0018%
Stereo crosstalk : -100.0dB

Connectivity
* Line Input : 2 of RCA jack
* Line Output : 1 of RCA jack

System Requirements
* Using in any equipment with Line-out function

Package Contents
* Mass
* DC24V 0.5A power adapter
* Remote controller
* User manual
* Warranty card
* Wrench

Service & Technical Support
If you have any problems about using this product, please contact distributors of Firestone Audio Corporation; send the E-mail to the E-mail address of Firestone Audio Co., Ltd. or directly contact to our company. The following is the information of Firestone Audio Corporation:

Firestone Audio Co., Ltd.
Address: Rm. 2, 19F., No.97, Sec. 4, Chongsin Rd.,
Sanchong City, Taipei County 241,
Taiwan (R.O.C.)
Tel: +886-2-29753657, +886-2-29753608
Website: http://www.firestone-audio.com
E-mail Address: tech@firestone-audio.com.tw



Specifications > Amplifier > Mass Remote Pre-AMP
ManufacturerFirestone Audio Co., Ltd.
Model nameMass Remote Pre-AMP
Catalog No.4716329380131
Kind of amplifierPre-amplifier
TypeDigital
Number of channels2
Total Harmonic Distortion (THD)0.0018 %
Signal to noise ratio-107.5 dB
Frequency responsefrom 40 Hz to 15 kHz
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorNo
Standby modeYes
Remote controlYes
Phono inputNo
Available front panel colorsGray Colour
Available front panel materialsAcrylic
Dimensions (Height/Width/Depth)7.7/7.8/10.7 cm
