Hi-Fi Amplifier > LL1 Signature > LAMM INDUSTRIES INC.



LL1 Signature


from

LAMM INDUSTRIES INC.






Ask manufacturer about this product

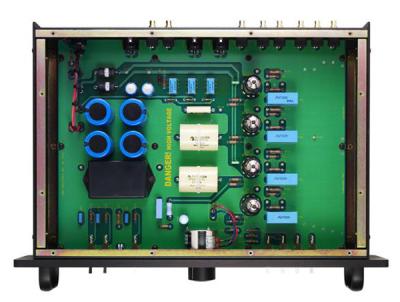

LAMM INDUSTRIES INC. LL1 Signature photo 5
Views: 9300
Last update: 2009-12-29
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 | Photo 6 |

The monaural line level preamplifier model LL1 Signature is the ultimate statement of perfection in High-End audio. Just like the ML3 Signature is the best creation of its designer's professional career among the LAMM amplifiers, so is the LL1 Signature among the line-level LAMM preamplifiers.

The LL1 Signature has been designed to complement the ML3 Signature amplifier, and this combination in a system represents a "match made in heaven". However, the LL1 Signature will perform magic with any other appropriate power amplifier.

This preamplifier features a topology that brings out the most natural sound performance in the audio path. In principle, it is a single-stage unit that basically represents the shortest possible signal path. The preamplifier contains four very linear low impedance triodes paralleled into a single inverting gain stage.

The LL1 Signature employs a pure single-ended class A operation, with no overall feedback applied. Also featured are specially selected high-transconductance dual triodes 6N30P-DR/ 6?30?-?? (original) in the signal path and TKD stepped potentiometers for volume control - the best available on today's market.

The preamplifier's audibly neutral power supply features a full-wave vacuum rectifier. This rectifier, together with a choke- containing filter, allows to practically get rid of the hum and buzz and, in the end, to ensure the verity of dynamic range without coloration. Two solid-state analog voltage regulators supply dc voltage to the tube filaments (heaters). Other features include 3 inputs, one tape/HT processor loop, attenuator (-12 dB) switch, output 1/output 2 switches, protection circuitry designed to enable manual muting of the output signal, and built-in remote on/off for LAMM power amplifiers.


Specifications > Amplifier > LL1 Signature
ManufacturerLAMM INDUSTRIES INC.
Model nameLL1 Signature
Catalog No.LL1 Signature
Kind of amplifierPre-amplifier
TypeTube
Number of channels2
ClassA
Signal to noise ratio97 dB
Frequency responsefrom 20 Hz to 20 kHz
Number of inputs3
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorYes
Standby modeNo
Remote controlYes
Phono inputYes
Available front panel materialsmetal
Dimensions (Height/Width/Depth)4.5/19/13.875 inch
Weight16.2 kg (35.8 pounds)
Suggested retail price42690 USD
Manufacturer's product URLhttp://www.lammindustries.com/PRODUCTS/LL1descr.html
LL1 Signature > LAMM INDUSTRIES INC.

Reviews/opinions about LL1 Signature:

None
