001AB BINDING POST


from

I/K Audio





Ask manufacturer about this product

I/K Audio 001AB BINDING POST photo 1
Views: 6982
Last update: 2014-09-20		| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 |

Binding post ? high-end class /www.ika-1.com/

High-end connector patented from I/K audio. Connector is made by hand from high quality materials. It is used selectively dry wood under natural conditions / minimum 8 years /, genuine leather, aluminum, copper and precious metals / silver, gold, rhodium, platinum /.
Installation of the connector is easy and does not depend on the thickness of the panel unlike the known panel connectors. Suitable for any thickness of the wall of the loudspeaker or amplifier. The design allows for attachment of cable to 17 sq. mm connector "banana" 4 mm type and connector "fork" 8/6 mm type. Connector has very good damping properties, magnificent contact area and very short signal path / to 3 times shorter and up to 2 times as large cross-section of the known connectors /.

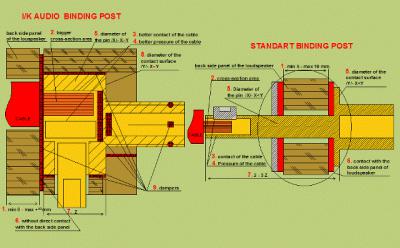

Sheme:
1. Easy installation, regardless of the thickness of the rear panel of the speaker.
2. bigger cross-section area to the speaker and loudspeaker cable.
3. better contact of the cable
4. better pressure of the cable
5. Diameter of pin is equal to the diameter of the contact area of loudspeaker cable
6.without direct contact with the back side panel
7. Very short signal path /from to 2 to 3 times /
8. See Item 5.
9. A great dempf and dampers stabilizers.


Specifications > Cable > 001AB BINDING POST
ManufacturerI/K Audio
Model name001AB BINDING POST
TypeSpeaker
Terminating connectorsrevolution binding post
001AB BINDING POST > I/K Audio
