Hi-Fi Amplifier > Sensor Prelude IC > RCM Audio



Sensor Prelude IC


from

RCM Audio






Ask manufacturer about this product

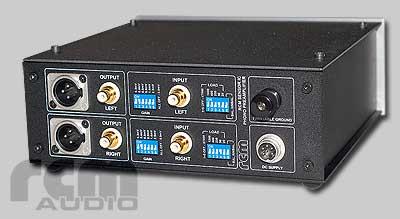

RCM Audio Sensor Prelude IC photo 2
Views: 7163
Last update: 2009-02-11
| Photo 1 | Photo 2 | Photo 3 |

Built to the highest quality standards this preamplifier provides precise RIAA correction for cartridges in the range of 0.3 mV to 5 mV, and outputs a line level signal of 2 Volts at 1 kHz.
Easily accessible switches on the back panel allow the user to adjust cartridge load impedance, gain and mode of input stage (balanced or single-ended).
RIAA correction is achieved via a passive split network with two separate RC filters, low noise resistors and 1% tolerance polypropylene capacitors.
To ensure high precision in the RIAA correction each component of the filter is hand picked and measured to guarantee a tolerance of less then 0.3 dB in the frequency range 20Hz - 20 kHz. This is done for every unit built so that the customer receives a unit sounding as good as the reference unit in our laboratory.
All other components in the preamplifier are selected to ensure perfect channel balance.


Specifications > Amplifier > Sensor Prelude IC
ManufacturerRCM Audio
Model nameSensor Prelude IC
Catalog No.Sensor Prelude IC
Kind of amplifierPhono amplifier
TypeSolid
Number of channels2
Output impedance70 Ohms
Total Harmonic Distortion (THD)0.01 %
Signal to noise ratio85 dB
Input sensitivity0.3 mV
Number of inputs1
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputYes
Dimensions (Height/Width/Depth)21.4/21.4/7.5 cm
Weight2 kg
Manufacturer's product URLhttp://www.rcmaudio.pl/sensoric/sensoric_main_en.htm
Sensor Prelude IC > RCM Audio
