Hi-Fi Amplifier > Abyssound ASA-1600 > Abyssound



Abyssound ASA-1600


from

Abyssound






Ask manufacturer about this product

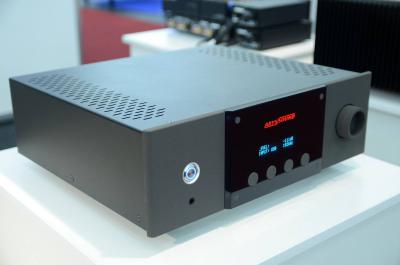

Abyssound Abyssound ASA-1600 photo 1
Views: 11307
Last update: 2016-01-03
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 |

Please vist us on Facebook:

www.facebook.com/Abyssound

or

www.abyssound.com

ASA-1600 High-end integrated amplifier with many different types of inputs: digital, usb, phono, balanced...

Onboard:
High quality DAC with USB asynchronous input 24/192
High quality MM/MC phono preamplifier
High quality headphone amplifier

Output power RMS (1kHz, 1% THD): ??? 165W/8 Ohm, 275W/4 Ohm
Volume control: ???????? MUTE, -111dB ÷ +15dB, jump: 0,5dB
Bandwidth: ???????????????????? 5Hz ÷ 138kHz (-3dB, 1W)
SNR: ?????????????????????????????????? more than 110dB
THD: ??????????????????????????????????????? 0,0045%
Input Impedance (RCA): ???????????????????? 30kOhm
Input Impedance (XLR): ???????????????????? 50kOhm
Input sensitivity MM/MC: ????????????????? 0,3mV ÷ 5mV (regulated)
Input resistance MM/MC: ???????????????? 14 Ohm ÷ 47000 Ohm (regulated)
Input capacitance MM/MC: ????????????????? 47pF



Specifications > Amplifier > Abyssound ASA-1600
ManufacturerAbyssound
Model nameAbyssound ASA-1600
Catalog No.ASA-1600
Kind of amplifierIntegrated amplifier
TypeSolid
Number of channels2
ClassAB
Per channel power output165 Watts
Total Harmonic Distortion (THD)0.0045 %
Signal to noise ratio110 dB
Input sensitivity500 mV
Power consumption830 Watts
Frequency responsefrom 5 Hz to 138 kHz
Number of inputs12
Source directYes
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorYes
Standby modeYes
Remote controlYes
Phono inputYes
Available front panel colorsBlack, Silver, other colors on request
Available front panel materialsAluminium
Dimensions (Height/Width/Depth)44/15/45 cm
Weight21.5 kg
Suggested retail price5750 EURO
Product review URLhttp://www.highfidelity.pl/@main-2637&lang=
Product review URLhttp://www.SoundRebels.com
Product review URLhttp://Facebook.com/Abyssound
Manufacturer's product URLhttp://www.abyssound.com
