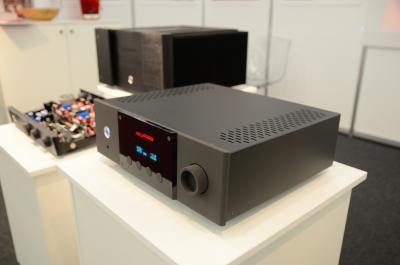

Abyssound ASA-1600

from

Abyssound

Ask manufacturer about this product

Views: 10799
Last update: 2016-01-03

Please vist us on Facebook:

www.facebook.com/Abyssound

or

www.abyssound.com

ASA-1600 High-end integrated amplifier with many different types of inputs: digital, usb, phono, balanced...

Onboard:
High quality DAC with USB asynchronous input 24/192
High quality MM/MC phono preamplifier
High quality headphone amplifier

Output power RMS (1kHz, 1% THD): ??? 165W/8 Ohm, 275W/4 Ohm
Volume control: ???????? MUTE, -111dB ÷ +15dB, jump: 0,5dB
Bandwidth: ???????????????????? 5Hz ÷ 138kHz (-3dB, 1W)
SNR: ?????????????????????????????????? more than 110dB
THD: ??????????????????????????????????????? 0,0045%
Input Impedance (RCA): ???????????????????? 30kOhm
Input Impedance (XLR): ???????????????????? 50kOhm
Input sensitivity MM/MC: ????????????????? 0,3mV ÷ 5mV (regulated)
Input resistance MM/MC: ???????????????? 14 Ohm ÷ 47000 Ohm (regulated)
Input capacitance MM/MC: ????????????????? 47pF

Specifications > Amplifier > Abyssound ASA-1600
Manufacturer	Abyssound
Model name	Abyssound ASA-1600
Catalog No.	ASA-1600
Kind of amplifier	Integrated amplifier
Type	Solid
Number of channels	2
Class	AB
Per channel power output	165 Watts
Total Harmonic Distortion (THD)	0.0045 %
Signal to noise ratio	110 dB
Input sensitivity	500 mV
Power consumption	830 Watts
Frequency response	from 5 Hz to 138 kHz
Number of inputs	12
Source direct	Yes
Balance	No
Treble / Bass	No
Loudness	No
Source selector	Yes
Standby mode	Yes
Remote control	Yes
Phono input	Yes
Available front panel colors	Black, Silver, other colors on request
Available front panel materials	Aluminium
Dimensions (Height/Width/Depth)	44/15/45 cm
Weight	21.5 kg
Suggested retail price	5750 EURO
Product review URL	http://www.highfidelity.pl/@main-2637&lang=
Product review URL	http://www.SoundRebels.com
Product review URL	http://Facebook.com/Abyssound
Manufacturer's product URL	http://www.abyssound.com
