Hi-Fi Amplifier > Mono Block 90 > Icon Audio

Mono Block 90


Icon Audio

Ask manufacturer about this product

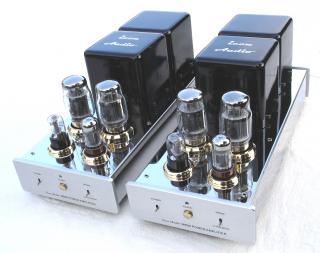

Icon Audio Mono Block 90 photo 1
Views: 6748
Last update: 2007-12-07
| Photo 1 | Photo 4 | Photo 5 |

The power output stage uses the super GEC KT90/88 probably the greatest all round hi fi valve, operating in both ?Ultralinear?(100w) and Triode mode (50w) to give the maximum choice of operating conditions. Effectively giving you two amplifiers in one! 100 watts of valve power is easily comparable with 200 watts of transistor power and will drive almost any sensitivity of speakers well, leaving plenty of headroom for dynamics and low distortion. The large custom wound transformers are able to deliver very deep bass notes and smooth clean treble.

Close attention has been paid to the large power supply using eight large capacitors and a large ?choke? in a traditional ?Pi? configuration. This gives very low source impedance with a huge reserve of power available for large transients without clipping.

This combination gives a very smooth and detailed sound stage which works well to bring out the colour and texture of older recordings and whilst not overemphasizing the harshness of many modern digit

Specifications > Amplifier > Mono Block 90
ManufacturerIcon Audio
Model nameMono Block 90
Catalog No.MB90
Kind of amplifierPower amplifier
Number of channels1
Per channel power output100 Watts
Total Harmonic Distortion (THD)0.1 %
Signal to noise ratio-90 dB
Frequency responsefrom 20 Hz to 20 kHz
Source directNo
Treble / BassNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputNo
Dimensions (Height/Width/Depth)20.5/20/50 cm
Weight20 kg
