D-2020-EL34B

from

Hefei Xiangsheng Electronic Co. Ltd

Ask manufacturer about this product

Views: 7211
Last update: 2009-08-14

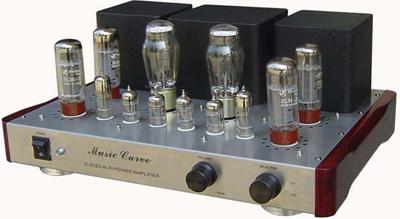

Music Curve D-2020-EL34B Vacuum Tube Amplifier
? Chassis is made of stainless steel of 1.2mm in thickness with wire brushing.
? Big metal knob, comb-like feet for reducing shaking.
? High-grade RCA terminal with gold plating.
? 4? and 8? power output terminals with gold plating.
? Side panels made from cherry wood.
? Blue power indicator.

Specifications > Amplifier > D-2020-EL34B
Manufacturer	Hefei Xiangsheng Electronic Co. Ltd
Model name	D-2020-EL34B
Catalog No.	D-2020-EL34B
Kind of amplifier	Integrated amplifier
Type	Tube
Number of channels	2
Class	AB
Per channel power output	30 Watts
Output impedance	8 Ohms
Total Harmonic Distortion (THD)	1 %
Signal to noise ratio	89 dB
Input sensitivity	500 mV
Frequency response	from 20 Hz to 30 kHz
Number of inputs	2
Source direct	Yes
Balance	Yes
Treble / Bass	No
Loudness	No
Source selector	Yes
Standby mode	Yes
Remote control	No
Phono input	No
Available front panel colors	metalic
Available front panel materials	stainless steel
Dimensions (Height/Width/Depth)	18/43.5/34 cm
Weight	22 kg
Manufacturer's product URL	http://www.xshn.com/en/display.asp?id=3
