Hi-Fi Amplifier > D-2020A-6550B > Hefei Xiangsheng Electronic Co. Ltd



D-2020A-6550B


from

Hefei Xiangsheng Electronic Co. Ltd






Ask manufacturer about this product

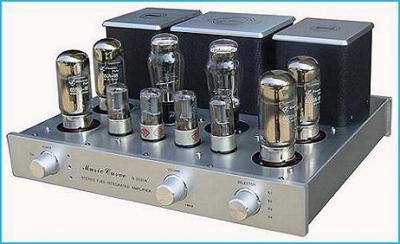

Hefei Xiangsheng Electronic Co. Ltd D-2020A-6550B photo 1
Views: 5907
Last update: 2009-08-14
| Photo 1 | Photo 2 | Photo 3 |

Music Curve D-2020A-6550B Vacuum Tube Amplifier:
? Front panel is made of aluminium alloy(thickness:10mm) with wire brushing.
? Back panel is made of aluminium alloy(thickness:6mm) with wire brushing.
? Transformer case with high grade paint, transformer shell made of aluminium in wire brushing.
? Top grade drum-shaped metal knob, honeycomb-shaped feet.
? Top grade signal RCA terminal with golden plating.
? Signal Switch:OMRON sealed silver Contact Relay switching, have a long life, no switching noise.
? Total power adopts relay with high current to connect.
? 4?and 8? output terminal with golden plating (now replaced by braking are high-grade gold amber Connection).
? Blue power indicator.LED red button for switching on with preheat instructions.
? 6N8P(6H8C)*4 pcs for pre amplification.


Specifications > Amplifier > D-2020A-6550B
ManufacturerHefei Xiangsheng Electronic Co. Ltd
Model nameD-2020A-6550B
Catalog No.D-2020A-6550B
Kind of amplifierIntegrated amplifier
TypeTube
Number of channels2
ClassAB
Per channel power output40 Watts
Output impedance8 Ohms
Total Harmonic Distortion (THD)1 %
Signal to noise ratio89 dB
Input sensitivity500 mV
Frequency responsefrom 20 Hz to 30 kHz
Number of inputs4
Source directYes
BalanceYes
Treble / BassNo
LoudnessNo
Source selectorYes
Standby modeYes
Remote controlNo
Phono inputNo
Available front panel colorsaluminium
Available front panel materialsaluminium
Dimensions (Height/Width/Depth)18/43.5/34 cm
Weight22 kg
Manufacturer's product URLhttp://www.xshn.com/en/display.asp?id=7
