Hi-Fi Amplifier > D-2030A-KT100 > Hefei Xiangsheng Electronic Co. Ltd



D-2030A-KT100


from

Hefei Xiangsheng Electronic Co. Ltd






Ask manufacturer about this product

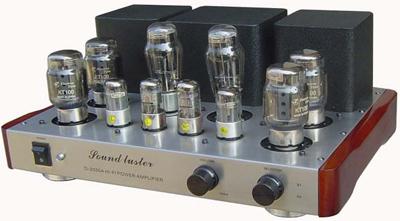

Hefei Xiangsheng Electronic Co. Ltd D-2030A-KT100 photo 1
Views: 10830
Last update: 2009-08-14
| Photo 1 | Photo 2 | Photo 3 | Photo 4 |

Sound Luster D-2030A-KT100 Vacuum Tube Amplifier
? Chassis is made of stainless steel of 1.2mm in thickness with wire brushing.
? Big metal knob, comb-like feet for reducing shaking.
? High-grade RCA terminal with gold plating.
? 4? and 8? power output terminals with gold plating.
? Side panels made from cherry wood.
? Blue power indicator.


Specifications > Amplifier > D-2030A-KT100
ManufacturerHefei Xiangsheng Electronic Co. Ltd
Model nameD-2030A-KT100
Catalog No.D-2030A-KT100
Kind of amplifierIntegrated amplifier
TypeTube
Number of channels2
ClassAB
Per channel power output35 Watts
Output impedance8 Ohms
Total Harmonic Distortion (THD)1 %
Signal to noise ratio86 dB
Input sensitivity500 mV
Frequency responsefrom 20 Hz to 30 kHz
Number of inputs2
Source directYes
BalanceYes
Treble / BassNo
LoudnessNo
Source selectorYes
Standby modeYes
Remote controlNo
Phono inputNo
Available front panel colorsmetalic
Available front panel materialsstainless steel
Dimensions (Height/Width/Depth)18/43.5/34 cm
Weight22 kg
Manufacturer's product URLhttp://www.xshn.com/en/display.asp?id=16
D-2030A-KT100 > Hefei Xiangsheng Electronic Co. Ltd

Reviews/opinions about D-2030A-KT100:


I purchased the Kt-100 Sound Luster amp. Very good sound and I must congratulate the workers, very good build quality of manufacture. I like the way it was put together and the components used. I cannot read Chinese therefore the manual has little use. Do you have a English manual Also any chance of getting a schematic? I run a company specializing in High end laboratory Instrument Repair. Thanks, and again my compliments to the workers and engineers, very nicely done.
----
Posted by: Customer on 2009-08-14 15:22:07 CET

Add your review/opinion about D-2030A-KT100:

Name
E-mail Hide my e-mail
Review
