D-2020A-EL34B

from

Hefei Xiangsheng Electronic Co. Ltd

Ask manufacturer about this product

Views: 6401
Last update: 2009-08-12

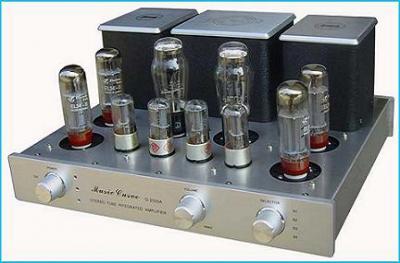

| Photo 1 | Photo 2 | Photo 3 |

Music Curve D-2020A-EL34B Vacuum Tube Amplifier:
? Front panel is made of aluminium alloy(thickness:10mm) with wire brushing.
? Back panel is made of aluminium alloy(thickness:6mm) with wire brushing.
? Transformer case with high grade paint, transformer shell made of aluminium in wire brushing.
? Top grade drum-shaped metal knob, honeycomb-shaped feet.
? Top grade signal RCA terminal with golden plating.
? Signal Switch:OMRON sealed silver Contact Relay switching, have a long life, no switching noise.
? Total power adopts relay with high current to connect.
? 4?and 8? output terminal with golden plating (now replaced by braking are high-grade gold amber Connection).
? Blue power indicator.LED red button for switching on with preheat instructions.
? 6N8P(6H8C)*4 pcs for pre amplification.

Specifications > Amplifier > D-2020A-EL34B
Manufacturer	Hefei Xiangsheng Electronic Co. Ltd
Model name	D-2020A-EL34B
Catalog No.	D-2020A-EL34B
Kind of amplifier	Integrated amplifier
Type	Tube
Number of channels	2
Class	AB
Per channel power output	30 Watts
Output impedance	8 Ohms
Total Harmonic Distortion (THD)	1 %
Signal to noise ratio	89 dB
Input sensitivity	500 mV
Frequency response	from 20 Hz to 30 kHz
Number of inputs	4
Source direct	Yes
Balance	Yes
Treble / Bass	No
Loudness	No
Source selector	Yes
Standby mode	Yes
Remote control	No
Phono input	No
Available front panel colors	aluminium
Available front panel materials	aluminium
Dimensions (Height/Width/Depth)	18/43.5/34 cm
Weight	22 kg
Manufacturer's product URL	http://www.xshn.com/en/display.asp?id=8
