708B

from

Hefei Xiangsheng Electronic Co. Ltd

Ask manufacturer about this product

Views: 7076
Last update: 2009-08-16

| Photo 1 | Photo 2 | Photo 3 |

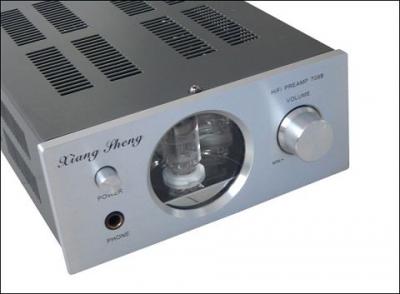

708B Tube Headphone/ pre- Amplifier
? Using 8mm thick aluminum alloy plating silver panel, the High Technology wrinkled sheet steel box section, the metal knob.
? Unique electron tubes show that the window after using a warm orange-red lamp.
? High-grade RCA terminal with gold plating, Sturdy output terminal with gold plating, reducing the contact resistance .
? Power supply socket inserted into the three-line, easy upgrading power lines.
? Japan or Taiwan-made W. L potentiometer for volume control,German red polypropylene capacitive coupling via mkp. no sense of Taiwan-made metal film resistor, Vernon Silver Dragon signal line.
? Hypertension using electron tube rectifier, two large reservoirs only ruby filter.
? Adopt no negative feedback circuits form.
? This nice amplifier refer to famous Japan Wada Shigeho's Style improved Electric circuit , having excellent performance. It's sufficient to keep pace with Marantz7.
? It is not only a pre-amplifier, but also a headphone amplifier. It is your nice choose.

Specifications > Amplifier > 708B
Manufacturer	Hefei Xiangsheng Electronic Co. Ltd
Model name	708B
Catalog No.	708B
Kind of amplifier	Headphone amplifier
Type	Hybrid
Number of channels	2
Class	A
Total Harmonic Distortion (THD)	0.01 %
Signal to noise ratio	89 dB
Input sensitivity	500 mV
Frequency response	from 20 Hz to 30 kHz
Number of inputs	2
Source direct	Yes
Balance	No
Treble / Bass	No
Loudness	No
Source selector	Yes
Standby mode	No
Remote control	No
Phono input	No
Available front panel colors	silver
Available front panel materials	aluminium
Dimensions (Height/Width/Depth)	8/18/27 cm
Weight	2.5 kg
Manufacturer's product URL	http://www.xshn.com/en/display.asp?id=23
