Hi-Fi Amplifier > 708B > Hefei Xiangsheng Electronic Co. Ltd



708B


from

Hefei Xiangsheng Electronic Co. Ltd






Ask manufacturer about this product

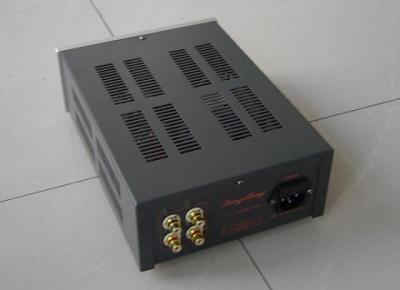

Hefei Xiangsheng Electronic Co. Ltd 708B photo 2
Views: 6715
Last update: 2009-08-16
| Photo 1 | Photo 2 | Photo 3 |

708B Tube Headphone/ pre- Amplifier
? Using 8mm thick aluminum alloy plating silver panel, the High Technology wrinkled sheet steel box section, the metal knob.
? Unique electron tubes show that the window after using a warm orange-red lamp.
? High-grade RCA terminal with gold plating, Sturdy output terminal with gold plating, reducing the contact resistance .
? Power supply socket inserted into the three-line, easy upgrading power lines.
? Japan or Taiwan-made W. L potentiometer for volume control,German red polypropylene capacitive coupling via mkp. no sense of Taiwan-made metal film resistor, Vernon Silver Dragon signal line.
? Hypertension using electron tube rectifier, two large reservoirs only ruby filter.
? Adopt no negative feedback circuits form.
? This nice amplifier refer to famous Japan Wada Shigeho's Style improved Electric circuit , having excellent performance. It's sufficient to keep pace with Marantz7.
? It is not only a pre-amplifier, but also a headphone amplifier. It is your nice choose.


Specifications > Amplifier > 708B
ManufacturerHefei Xiangsheng Electronic Co. Ltd
Model name708B
Catalog No.708B
Kind of amplifierHeadphone amplifier
TypeHybrid
Number of channels2
ClassA
Total Harmonic Distortion (THD)0.01 %
Signal to noise ratio89 dB
Input sensitivity500 mV
Frequency responsefrom 20 Hz to 30 kHz
Number of inputs2
Source directYes
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorYes
Standby modeNo
Remote controlNo
Phono inputNo
Available front panel colorssilver
Available front panel materialsaluminium
Dimensions (Height/Width/Depth)8/18/27 cm
Weight2.5 kg
Manufacturer's product URLhttp://www.xshn.com/en/display.asp?id=23
