Hi-Fi Amplifier > D2020-KT100 > Hefei Xiangsheng Electronic Co. Ltd



D2020-KT100


from

Hefei Xiangsheng Electronic Co. Ltd






Ask manufacturer about this product

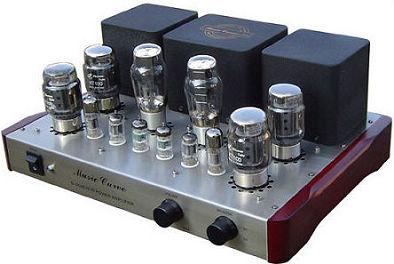

Hefei Xiangsheng Electronic Co. Ltd D2020-KT100 photo 1
Views: 4356
Last update: 2009-08-12
| Photo 1 |

Product Description:

1. Chassis is made of stainless steel of 1.2mm in thickness with wire brushing.
2. Big metal knob, comb-like feet for reducing shaking.
3. High-grade RCA terminal with gold plating.
4. 4ohms and 8ohms power output terminals with gold plating.
5. German red polypropylene capacitive coupling via mkp.
6. Side panels made from cherry wood.
7. Blue power indicator.



Main Parameter:

Power Tube: KT100×4; Tubes for Preamp. Part: 12AT7×2,12AU7×2,6N6T×2;Tube for rectifying: 5Z3P×2
Input Impedance: 100Kohms
Output Impedance: 4ohms 8ohms
Input Sensitivity: 500--2000mV
Total Hamonic Distortion: less than 1(1KHz)
Frequeney responses: 20Hz-30KHz+/-1dB
Maximum output: 45W×2(8? Standard connection mode) 35W×2(8? Triode connection mode)
Signal to Noise Ratio: 89dB
Input Jacks: 2 groups

Output Jacks: 2 groups
Supply Votage: AC100V-AC240V available 60Hz/50Hz
Size: 435mm(W)×180mm(H)×340mm(D)
Weight: 22kg

CHARACTERISTIC: Side panels made from cherry wood. / have Manual Point To Point Welding and PCB as optional.







Specifications > Amplifier > D2020-KT100
ManufacturerHefei Xiangsheng Electronic Co. Ltd
Model nameD2020-KT100
Catalog No.D2020-KT100
Kind of amplifierIntegrated amplifier
TypeTube
Number of channels2
ClassAB
Per channel power output35 Watts
Output impedance4 Ohms
Total Harmonic Distortion (THD)0.01 %
Signal to noise ratio89 dB
Frequency responsefrom 20 Hz to 30 kHz
Number of inputs2
Source directYes
BalanceYes
Treble / BassNo
LoudnessNo
Source selectorYes
Standby modeYes
Remote controlNo
Phono inputNo
Available front panel colorsaluminium
Available front panel materialsaluminium
Dimensions (Height/Width/Depth)18/43.5/34 cm
Weight22 kg
Manufacturer's product URLhttp://www.xshn.com/en/display.asp?id=6
D2020-KT100 > Hefei Xiangsheng Electronic Co. Ltd

Reviews/opinions about D2020-KT100:

None
