Bigjoe2 Power AMP


from

Firestone Audio Co., Ltd.





Ask manufacturer about this product

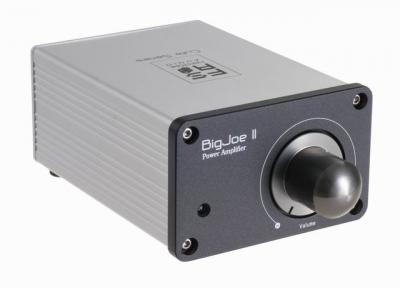

Firestone Audio Co., Ltd. Bigjoe2 Power AMP photo 1
Views: 10421
Last update: 2010-04-20		| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 | Photo 6 |

Feature
BigJoe2 is a kind of Class-D Integrated Amplifier.
BigJoe 2 can be running for a long time with high power efficiency?low power consumption.
Four types of gain controls can adjust the power or amplitude of a signal. Also, the function of by-pass jumper can make BigJoe2 be a pure power amplifier so the user can select an ideal pre amplifier to connect together without worrying the problems of effect of sound and difficulty of sound control.

Technical Specifications
* Amplifier Structure : Coupling capacitor, Class-D
* Power Structure : Soft-Start circuit, Single-supply
* Gain Control : 20dB / 26dB / 32dB / 36dB selectable
* Power Output : 8ohm @ 20W (10%THD), 4ohm @ 20W (0.3%THD)
* Circuit Protect : Output short / over current / over and under voltage / temperature protect
* Characteristic : Built in high quality WIMA capacitor and inductor
* Main Amp : TI = TPA3100D2

Connectivity
* Line Input : 1 of RCA jack
* Line Output : 2 of RJ45 jack (stereo)

System Requirements
* Using in any equipment with Line-out or Pre-out function

Package Contents
* Big Joe II
* DC19V 3.42A power adapter
* Speaker cord
* User manual
* Warranty card
* Wrench

Service & Technical Support
If you have any problems about using this product, please contact distributors of Firestone Audio Corporation; send the E-mail to the E-mail address of Firestone Audio Co., Ltd. or directly contact to our company. The following is the information of Firestone Audio Corporation:

Firestone Audio Co., Ltd.
Address: Rm. 2, 19F., No.97, Sec. 4, Chongsin Rd.,
Sanchong City, Taipei County 241,
Taiwan (R.O.C.)
Website: http://www.firestone-audio.com
E-mail Address: tech@firestone-audio.com.tw



Specifications > Amplifier > Bigjoe2 Power AMP
ManufacturerFirestone Audio Co., Ltd.
Model nameBigjoe2 Power AMP
Catalog No.4716329380148
Kind of amplifierPower amplifier
TypeDigital
Number of channels2
ClassD
Per channel power output20 Watts
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputNo
Available front panel colorsSilver/Black
Available front panel materialsAlumi
Dimensions (Height/Width/Depth)7.7/7.8/10.7 cm
