Hi-Fi Amplifier > Fubar4 Plus DACs/Headphone AMP > Firestone Audio Co., Ltd.



Fubar4 Plus DACs/Headphone AMP


from

Firestone Audio Co., Ltd.






Ask manufacturer about this product

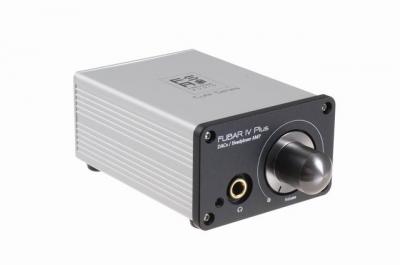

Firestone Audio Co., Ltd. Fubar4 Plus DACs/Headphone AMP photo 1
Views: 9707
Last update: 2010-04-20
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 | Photo 6 |

Feature
Fubar 4+ is a USB DAC Headphone Amplifier with Coaxial and Optical Input.
Fubar 4+ combines Fubar II USB DAC with Cute Curve Headphone Amplifier into one tiny unit. Using the Universal Serial Bus, users can simply plug and play without installing any drivers (with Linux, Mac OS or PC Windows system). With Coaxial and Optical Input (various kinds of input mode) users can select an ideal transfer medium (USB, Coaxial, or Optical Inputs) to satisfy the needs of sound quality. Up sampling make users feel the real, natural sound.

Technical Specifications
* Amplifier Structure : Coupling capacitor less, Push-Pull with Class-B
* Linear Output : RCA output 2Vrms, delay time phone out function
* Power Structure : Switching power supply, Soft-Star circuit
* Gain Control : Low (attenuation 20dB) / High (normal)
* Volume Control : Series / shunt mode selectable
* Headphone Impedence : 32 ohm to 600 ohm
* Circuit Protect : Output short / over current protect
* USB Support Format : 16-bit, 32 / 44.1kHz / 48kHz
* SPDIF Support Format : 24-bit / 96kHz (MAX)
* Upsampling : Up to 192kHz
* Input Select : Auto Select, USB input is highest priority
* USB Chip : CMedia - CM108
* Reciver : TI - DIR9001
* ASRC Chip : TI - SRC4192
* DAC Chip : TI - PCM1793
* LPF OPAmp : NS - LM4562
* Main OPAmp : TI ? OPA2604
* Servo OPAmp : TI - TL072

Audio Performance - Coaxial / Optical input - Line output (1kHz sine wave, 2Vrms output, 24-bit / 48kHz)
Frequency response (From 40Hz to 15kHz) : 40Hz +0.01dB, 15kHz -0.03dB
Noise level (1kHz, A-Weighted) : -111.9dB
Dynamic range (1kHz, A-Weighted) : 111.6dB
THD% : 0.0018%
Stereo crosstalk : -111.0dB

Audio Performance - Coaxial / Optical input - Phone output (1kHz sine wave, 2Vrms output, 24-bit / 48kHz)
Frequency response (From 40Hz to 15kHz) : 40Hz +0.01dB, 15kHz -0.03dB
Noise level (1kHz, A-Weighted) : -99.7dB
Dynamic range (1kHz, A-Weighted) : 99.6dB
THD% : 0.0020%
Stereo crosstalk : -90.0dB

Audio Performance - USB input - Line output (1kH

Specifications > Amplifier > Fubar4 Plus DACs/Headphone AMP
ManufacturerFirestone Audio Co., Ltd.
Model nameFubar4 Plus DACs/Headphone AMP
Catalog No.4716329380070
Kind of amplifierHeadphone amplifier
TypeDigital
Number of channels2
ClassB
Total Harmonic Distortion (THD)0.0018 %
Signal to noise ratio-111.9 dB
Frequency responsefrom 40 Hz to 15 kHz
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputNo
Available front panel colorsSilver/Black
Available front panel materialsAlumi
Dimensions (Height/Width/Depth)7.7/7.8/10.7 cm
