Hi-Fi Amplifier > Korora MC/MM Phono AMP > Firestone Audio Co., Ltd.



Korora MC/MM Phono AMP


from

Firestone Audio Co., Ltd.






Ask manufacturer about this product

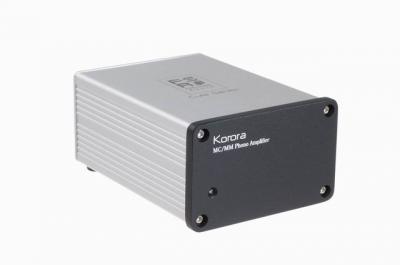

Firestone Audio Co., Ltd. Korora MC/MM Phono AMP photo 1
Views: 11117
Last update: 2010-04-20
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 | Photo 6 |

Feature
Korora is a kind of MM/MC Phono Amplifier with RIAA Filter.
Adopting recharge circuits and high performance Ni-MH battery make Korora can be run by the inside battery (high S/N). According to the different standards of cartridge, the users can select the appropriate model by adjustments of impedance and capacitance. Four types of gain control can make the user easily adjust the power or amplitude of a signal.

Technical Specifications
* Amplifier Structure : MM / MC RIAA amplifier
* Power Structure : Built in Battery and Virtual-Ground power supply
* Gain Control :51dB / 54dB / 58dB / 69dB selectable
* Input Impedence : 220pF / 10ohm / 43ohm / 100ohm / 47Kohm / Opiton
* Circuit Protect : Output short / over current protect
* Circuit Protect : Over current protect
* Main OPAmp : TI = OP27G, TI - OPA277

Connectivity
* Line Input : 1 of RCA jack
* Line Output : 1 of RCA jack

System Requirements
* Using in any LP with MM or MC cartridge

Package Contents
* Korora
* DC24V 0.5A power adapter
* User manual
* Warranty card
* Wrench

Service & Technical Support
If you have any problems about using this product, please contact distributors of Firestone Audio Corporation; send the E-mail to the E-mail address of Firestone Audio Co., Ltd. or directly contact to our company. The following is the information of Firestone Audio Corporation:

Firestone Audio Co., Ltd.
Address: Rm. 2, 19F., No.97, Sec. 4, Chongsin Rd.,
Sanchong City, Taipei County 241,
Taiwan (R.O.C.)
Tel: +886-2-29753657, +886-2-29753608
Website: http://www.firestone-audio.com
E-mail Address: tech@firestone-audio.com.tw




Specifications > Amplifier > Korora MC/MM Phono AMP
ManufacturerFirestone Audio Co., Ltd.
Model nameKorora MC/MM Phono AMP
Catalog No.4716329380094
Kind of amplifierHeadphone amplifier
TypeDigital
Number of channels2
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputYes
Available front panel colorsSilver/Black
Available front panel materialsAlumi
Dimensions (Height/Width/Depth)7.7/7.8/10.7 cm
