Hi-Fi Amplifier > FubarI/O DAC/ADC > Firestone Audio Co., Ltd.



FubarI/O DAC/ADC


from

Firestone Audio Co., Ltd.






Ask manufacturer about this product

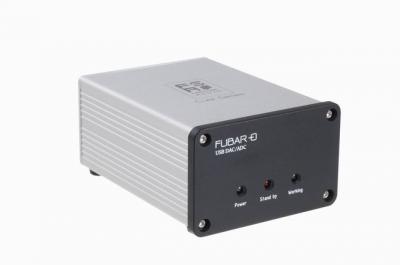

Firestone Audio Co., Ltd. FubarI/O DAC/ADC photo 1
Views: 9875
Last update: 2010-04-20
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 | Photo 6 |

Feature
FubarIO is a High-Quality USB DAC/ADC Device.
Using Universal Serial Bus you can simply Plug and play without installing any drivers (with Linux, Mac OS or PC Windows system). Also adopting the full-duplex system which allows communication in both directions (digital signals and analogy signals) have the functions of recording and playing back in order to offer FubarIO to the consumers who have the demand of transfer cassettes and records to computer or CD.

Technical Specifications
* Amplifier Structure : Low pass filter with 2Vrms output
* Power Structure : Virtual-Ground power supply
* Playback Support Format : 16-bit, 32 / 44.1kHz / 48kHz
* Recording Support Format : 16-bit, 8 / 11.025 / 16 / 22.05 /32 /44.1 /48kHz
* Circuit Protect : Output short / over current protect
* USB Chip : TI - PCM2902
* LPF OPAmp : NS - LM4562

Audio Performance - Playback (1kHz sine wave, 2Vrms output, 16-bit / 48kHz)
Frequency response (From 40Hz to 15kHz) : 40Hz +0.05dB, 15kHz -0.13dB
Noise level (1kHz, A-Weighted) : -94.0dB
Dynamic range (1kHz, A-Weighted) : 94.0dB
THD% : 0.0072%
Stereo crosstalk : -94.7dB

Audio Performance - Recording (1kHz sine wave, 2Vrms output, 16-bit / 48kHz)
Frequency response (From 40Hz to 15kHz) : 40Hz +0.04dB, 15kHz -0.16dB
Noise level (1kHz, A-Weighted) : -91.1dB
Dynamic range (1kHz, A-Weighted) : 91.3dB
THD% : 0.0090%
Stereo crosstalk : -88.1dB

Connectivity
* USB interface (USB V1.1)
* Line Output : 1 of RCA - Playback jack
1 of RCA - Recording jack

System Requirements
* Intel? Pentium? 2, Celeron? 800MHz or higher computer system
* Microsoft? Windows 2000? (Service Pack 4) or Windows? XP (Service Pack 1)
* 128MB RAM
* Available USB port

Package Contents
* Fubar IO
* DC24V 0.5A power adapter
* RCA wire
* USB wire
* User manual
* Warranty card
* Wrench

Recommendation for Fubar IO:
According to functions of Fubar IO, Firestone Audio Corporation recommends useful software, Audacity?, for the users to download with our p

Specifications > Amplifier > FubarI/O DAC/ADC
ManufacturerFirestone Audio Co., Ltd.
Model nameFubarI/O DAC/ADC
Catalog No.4716329380056
Kind of amplifierHeadphone amplifier
TypeDigital
Number of channels2
ClassAB
Total Harmonic Distortion (THD)0.0072 %
Signal to noise ratio-94 dB
Frequency responsefrom 40 Hz to 15 kHz
Source directNo
BalanceNo
Treble / BassNo
LoudnessNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputNo
Available front panel colorsSilver/Black
Available front panel materialsAlumi
Dimensions (Height/Width/Depth)7.7/7.8/10.7 cm
