Bigjoe3 Digital Power AMP


Firestone Audio Co., Ltd.

Ask manufacturer about this product

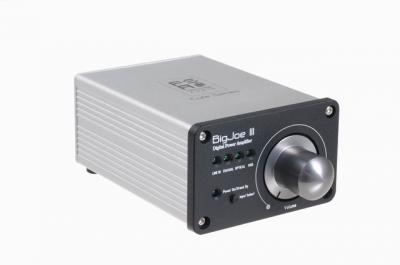

Firestone Audio Co., Ltd. Bigjoe3 Digital Power AMP photo 1
Views: 11094
Last update: 2010-04-20
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 | Photo 6 |

BigJoe III is a Digital Integrated Amplifier with the technology of Class-D.
BigJoe III can be running for a long time with high power efficiency?low power consumption. With Coaxial, Optical, USB, and Analogy Input (various kinds of input mode) users can select an ideal transfer medium (USB, Analogy, Coaxial, or Optical Inputs) to satisfy the needs of sound quality.

Technical Specifications
* Amplifier Structure : Ture digital signal path, Class-D
* Power Structure : Soft-Start circuit, Single-supply
* Power Mode : Stand by and Power on mode, provided with main power swtich to shut down
* Input Select : USB / Coaxial / Optical / Line in
* Power Output : 8ohm @ 20W (10%THD), 4ohm @ 20W (0.3%THD)
* Circuit Protect : Output short / over current / over and under voltage / temperature protect
* Characteristic : Built in high quality WIMA capacitor and inductor
* Reclock : Include Fi-reclock? technology to reduce jitter
* USB Support Format : 16-bit, 32 / 44.1kHz / 48kHz
* SPDIF Support Format : 24-bit, 96kHz (MAX)
* Main Amp : TI - TAS5706
* ADC Chip : Cirrus - CS5343
* USB Chip : CMedia - CM102
* Receiver : TI - DIR9001

* USB interface (USB 1.1)
* Digital Input : 1 of coaxial jack
1 of optical jack
* Line Input : 1 of 3.5mm phone jack
* Line Output : 2 of RJ45 jack (stereo)

System Requirements
* Using in any equipment with Line-out or Pre-out function
* Intel? Pentium? 2, Celeron? 800MHz or higher computer system
* Microsoft? Windows 2000? (Service Pack 4) or Windows? XP (Service Pack 1)
* 128MB RAM
* Available USB port

Package Contents
* Big Joe III
* DC19V 3.42A power adapter
* Speaker cord
* USB wire
* User manual
* Warranty card
* Wrench

Service & Technical Support
If you have any problems about using this product, please contact distributors of Firestone Audio Corporation; send the E-mail to the E-mail address of Firestone Audio Co., Ltd. or directly contact to our company. The following is the information of Fi

Specifications > Amplifier > Bigjoe3 Digital Power AMP
ManufacturerFirestone Audio Co., Ltd.
Model nameBigjoe3 Digital Power AMP
Catalog No.4716329380155
Kind of amplifierPower amplifier
Number of channels2
Power consumption20 Watts
Source directNo
Treble / BassNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputNo
Available front panel colorsSilver/Black
Available front panel materialsAlumi
Dimensions (Height/Width/Depth)7.7/7.8/10.7 cm
