Fubar2 USB DAC


Firestone Audio Co., Ltd.

Ask manufacturer about this product

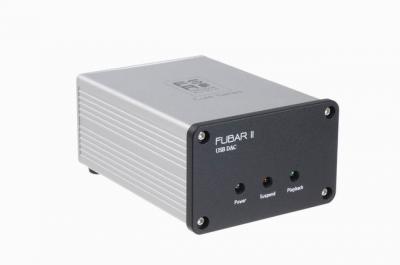

Firestone Audio Co., Ltd. Fubar2 USB DAC photo 1
Views: 9316
Last update: 2010-04-20
| Photo 1 | Photo 2 | Photo 3 | Photo 4 | Photo 5 | Photo 6 |

Fubar II is a USB DAC.
Adopting Universal Serial Bus can plug and play without installing any drivers (with Linux, Mac OS or PC Windows system). Also using separate regulators for analogy & digital circuits?setting the power switch and reinforcing the regulator. According to Fubar II which is a transfer from digital signal to analogy signal, it can enhance the quality of the sound.

Technical Specifications
* Amplifier Structure : Low pass filter with 2Vrms output
* Power Structure : Virtual-Ground power supply
* Support Format : 16-bit, 32 / 44.1kHz / 48kHz
* Circuit Protect : Output short / over current protect
* USB Chip : TI - PCM2702
* LPF OPAmp : NS - LM4562
* Servo OPAmp : TI - TL072

Audio Performance (1kHz sine wave, 2Vrms output, 16-bit / 48kHz)
Frequency response (From 40Hz to 15kHz) : 40Hz +0.01dB, 15kHz -0.12dB
Noise level (1kHz, A-Weighted) : -96.1dB
Dynamic range (1kHz, A-Weighted) : 96.1dB
THD: 0.0018
Stereo crosstalk : -96dB

* USB interface (USB V1.1)
* Line Output : 1 of RCA jack

System Requirements
* Intel? Pentium? 2, Celeron? 800MHz or higher computer system
* Microsoft? Windows 2000? (Service Pack 4) or Windows? XP (Service Pack 1)
* 128MB RAM
* Available USB port

Package Contents
* Fubar II
* DC24V 0.5A power adapter
* RCA wire
* USB wire
* User manual
* Warranty card
* Wrench

Service & Technical Support
If you have any problems about using this product, please contact distributors of Firestone Audio Corporation; send the E-mail to the E-mail address of Firestone Audio Co., Ltd. or directly contact to our company. The following is the information of Firestone Audio Corporation:

Firestone Audio Co., Ltd.
Address: Rm. 2, 19F., No.97, Sec. 4, Chongsin Rd.,
Sanchong City, Taipei County 241,
Taiwan (R.O.C.)
Tel: +886-2-29753657, +886-2-29753608
Website: http://www.firestone-audio.com
E-mail Address: tech@firestone-audio.com.tw

Specifications > Amplifier > Fubar2 USB DAC
ManufacturerFirestone Audio Co., Ltd.
Model nameFubar2 USB DAC
Catalog No.4716329380032
Kind of amplifierOther
Number of channels2
Total Harmonic Distortion (THD)0.0018 %
Signal to noise ratio-96.1 dB
Frequency responsefrom 40 Hz to 15 kHz
Source directNo
Treble / BassNo
Source selectorNo
Standby modeNo
Remote controlNo
Phono inputNo
Available front panel colorsSilver/Black
Available front panel materialsAlumi
Dimensions (Height/Width/Depth)5.2/7.8/10.7 cm
